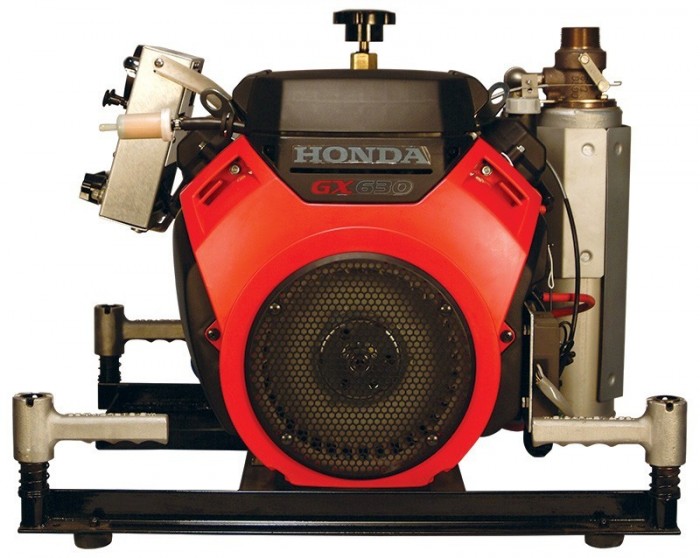

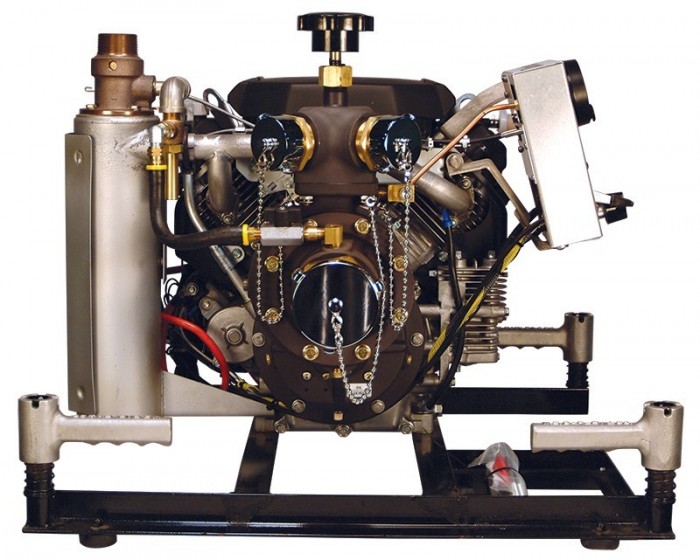

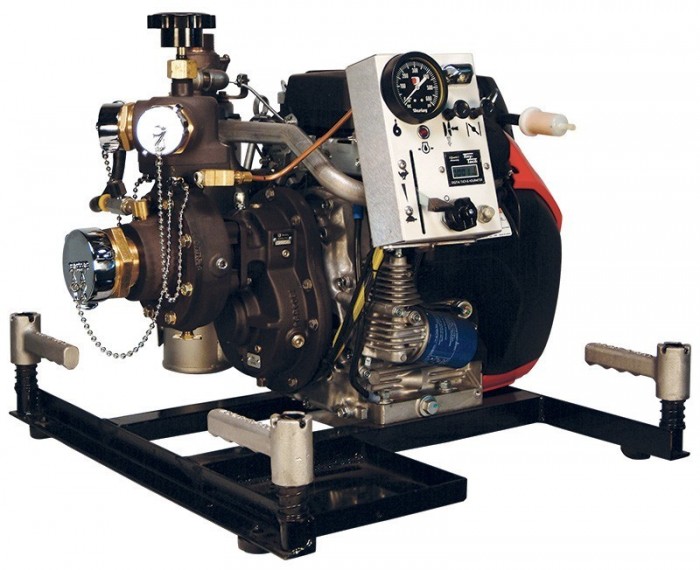

1-1/2AGE 21H Portable Pump
Part Number: 1-1/2AGE 21H
1-1/2AGE 21H Portable Pump
Part Number: 1-1/2AGE 21H
High Pressure, Low Volume, Gear Driven, Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 120 gpm (454 L/M) @ 155 psi (10.7 bar)
- 75 gpm (284 L/M) @ 230 psi (15.9 bar)
- 35 gpm (95 L/M) @ 300 psi (21.7 bar)
Features
- Aluminum alloy casing and discharge valve
- Discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Stainless steel impeller shaft
- Mechanical seal
- Built-in discharge check valve
- Adjustable discharge valve
- 2″ NPT suction
- 2 – 1-1/2″ NPT discharge
Engine
Honda GX 630: 4 cycle, 21 hp, V-twin, OHV, 6 gal. fuel tank, replaceable oil filter, 38.5 cu. in. displacement, 12 volt starter, 20 amp regulated alternator, hose and adapter
Weight
145 lbs. (66 kg)
Dimensions
24″L x 24″W x 23″H
Applications
- Booster reel
- Multiple hand lines
- Wildland/attack fire suppression
Options
- Adapters
- Gauge
- Battery and caps
Technology
N/A
