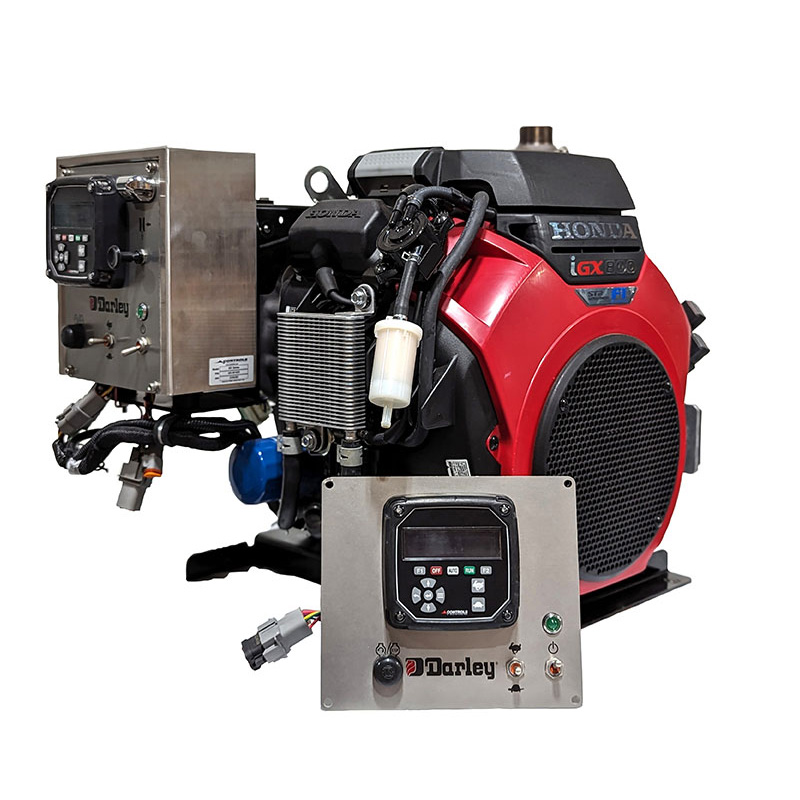

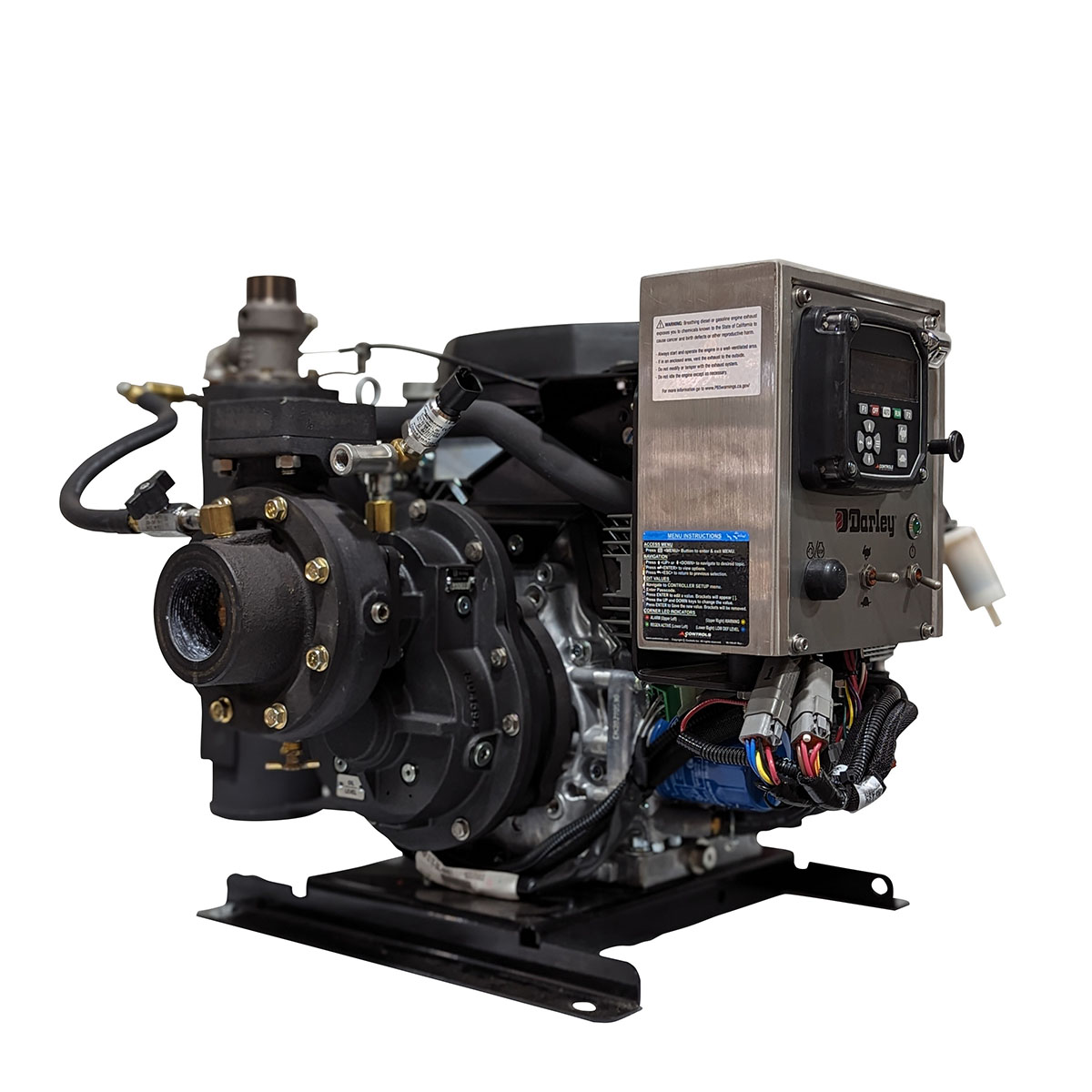

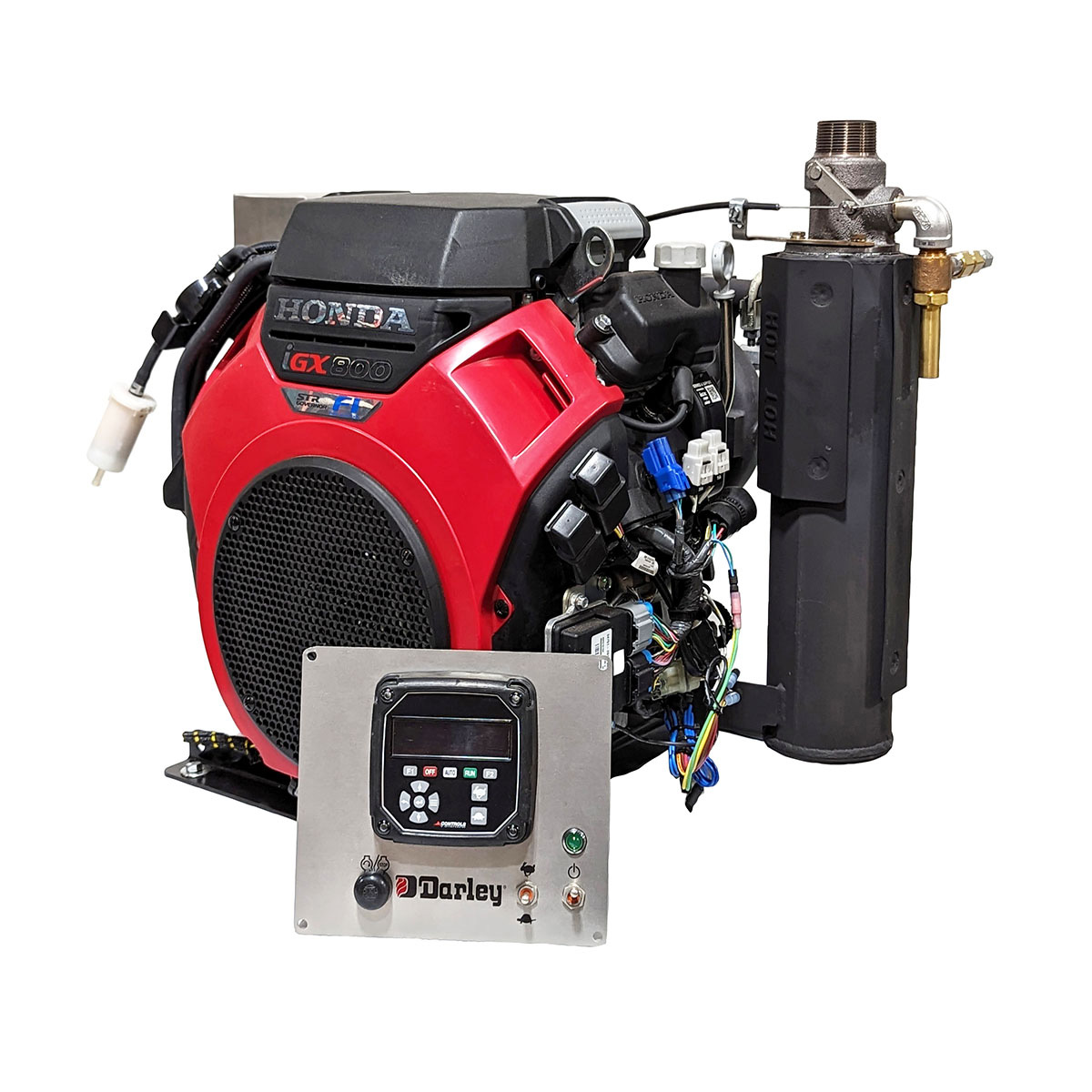

1-1/2AGE 25H EFI Portable Pump
1-1/2AGE 25H EFI Portable Pump
High Pressure, Low Volume, Gear Driven, Engine Mounted
Documents & Downloads
Install Instructions
Sales Flyers
Performance
- 120 gpm (454 L/M) @ 175 psi (12.1 bar)
- 80 gpm (303 L/M) @ 250 psi (17.2 bar)
- 30 gpm (114 L/M) @ 275 psi (19.0 bar)
Features
- Electronic fuel injection
- Digital displays
- Aluminum alloy casing and discharge valve
- Discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Stainless steel impeller shaft
- Mechanical seal
- Built-in discharge check valve
- Adjustable discharge valve
- 2″ NPT suction
- 2 1-1/2″ NPT discharge
Engine
- Honda IGX 800: Electronic fuel injection, electric STR governor, drive-by-wire control, 4 cycle, 25 hp, V-twin, OHV, 6 gal. fuel tank, replaceable oil filter, 38.5 cu. in. displacement, 12 volt starter, 20 amp regulated alternator, hose and adapter
Weight
145 lbs. (66 kg)
Dimensions
24″L x 28″W x 23″H
Applications
- Booster reel
- Multiple hand lines
- Wildland/attack fire suppression
Options
- Dual control panels
- Adapters, gauge, battery and caps
Technology
N/A
