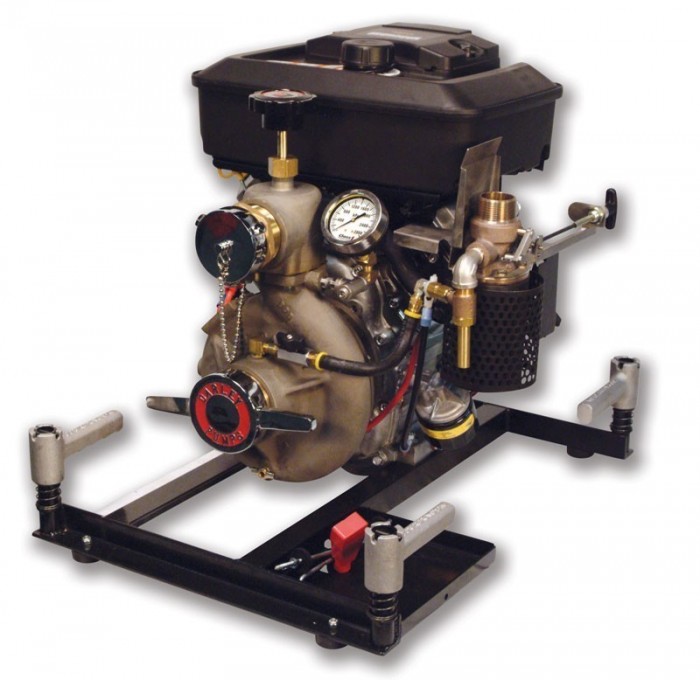

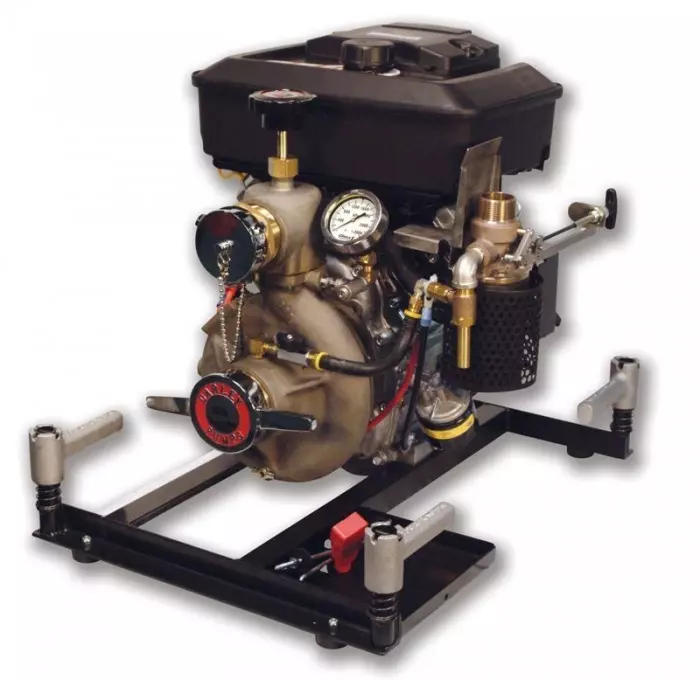

2BE 13V Twin Portable Pump
2BE 13V Twin Portable Pump
Medium Pressure, High Volume, Direct Drive, Engine Mounted
Documents & Downloads
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 300 gpm (1135 L/M) @ 15 psi (1 bar)
- 150 gpm (567 L/M) @ 75 psi (5.8 bar)
- 80 gpm (302 L/M) @ 100 psi (6.9 bar)
Features
- Electric start with recoil rope backup
- Exhaust primer, bronze impeller
- and wear rings
- Stainless steel shaft
- Mechanical Seal
- Discharge head with check valve
- Base with fold-away carrying handles
- Aluminum alloy gear case and engine adapter
- Heat-treated alloy steel helical gears
- 3″ NPT suction
- 2-1/2″ NPT discharge
Engine
Briggs & Stratton Vanguard: 13 HP, V-twin, 8.35 qt. gas tank, 12-volt starter, 16 amp alternator, recoil rope start back-up
Weight
145 lbs. (66 kg)
Dimensions
27″L x 21″W x 23″H
Applications
- Light Duty Brush Trucks
- Booster Tank Fill
- Transfer and Supply
Options
Adapters, Gauge, Battery, Caps
Technology
N/A
