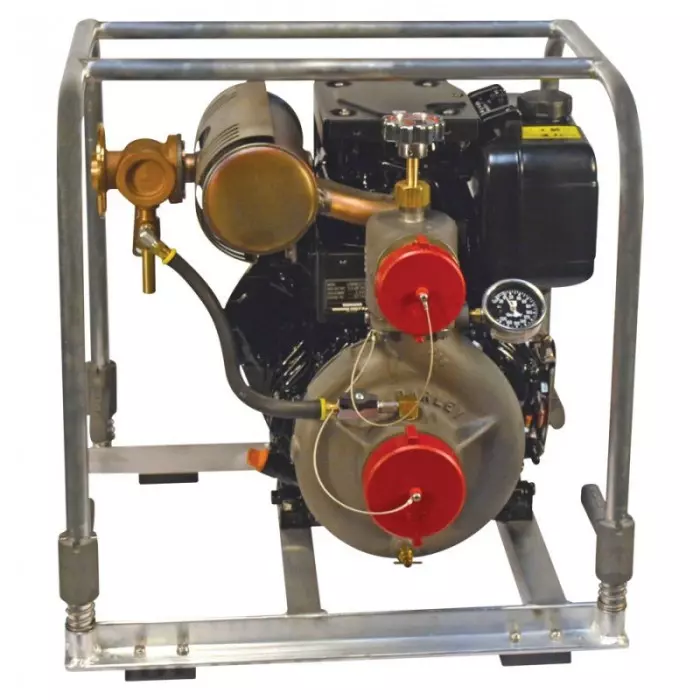

Darley P-100 (NAVY P100) 2BE10YDN
Part Number: 2BE10YDN P100 P-100
Darley P-100 (NAVY P100) 2BE10YDN
Part Number: 2BE10YDN P100 P-100
NSN: 4320-01-387-2869
- Medium Pressure
- High Volume
- Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Performance
- 250 gpm (946 L/M) @ 20 psi (1.4 bar)
- 180 gpm (681 L/M) @ 50 psi (4.1 bar)
- 95 gpm (359 L/M) @ 90 psi (6.2 bar)
Features
- Bronze or hard anodized pump
- 316 stainless shaft and fittings
- High-performance ceramic coating
- Imron painted engine
- Anodized aluminum alloy casing
- Discharge head
- Engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Shredded plastic packing
- Discharge check valve
- Adjustable discharge valve
- Throttle
- Roll cage
- Pressure gauge
- Exhaust primer
- 3″ NST suction with cap
- 2-1/2″ NST discharge with cap
- 2″ x 10′ engine exhaust hose
Engine
Yanmar L100N
- 4 cycle
- 10 HP
- 1 cylinder
- Recoil rope start back-up
- Optional 12-volt electric start and alternator
Weight
163 lbs. (74 kg)
Dimensions
24″L x 24″W x 23″H
Applications
- Marine
- Dewatering
- Transfer and Supply
Options
- Adapters
- Caps
- Electric start
- Mechanical seal
Technology
N/A
